Electrical Panel Manufacturing
Custom-built LT, HT, VFD, APFC, Thyristor switching and SVG hybrid panels — plus end-to-end MSEDCL liaisoning and regulatory approval services.
%20Distribution%20Panel.png&w=3840&q=75)

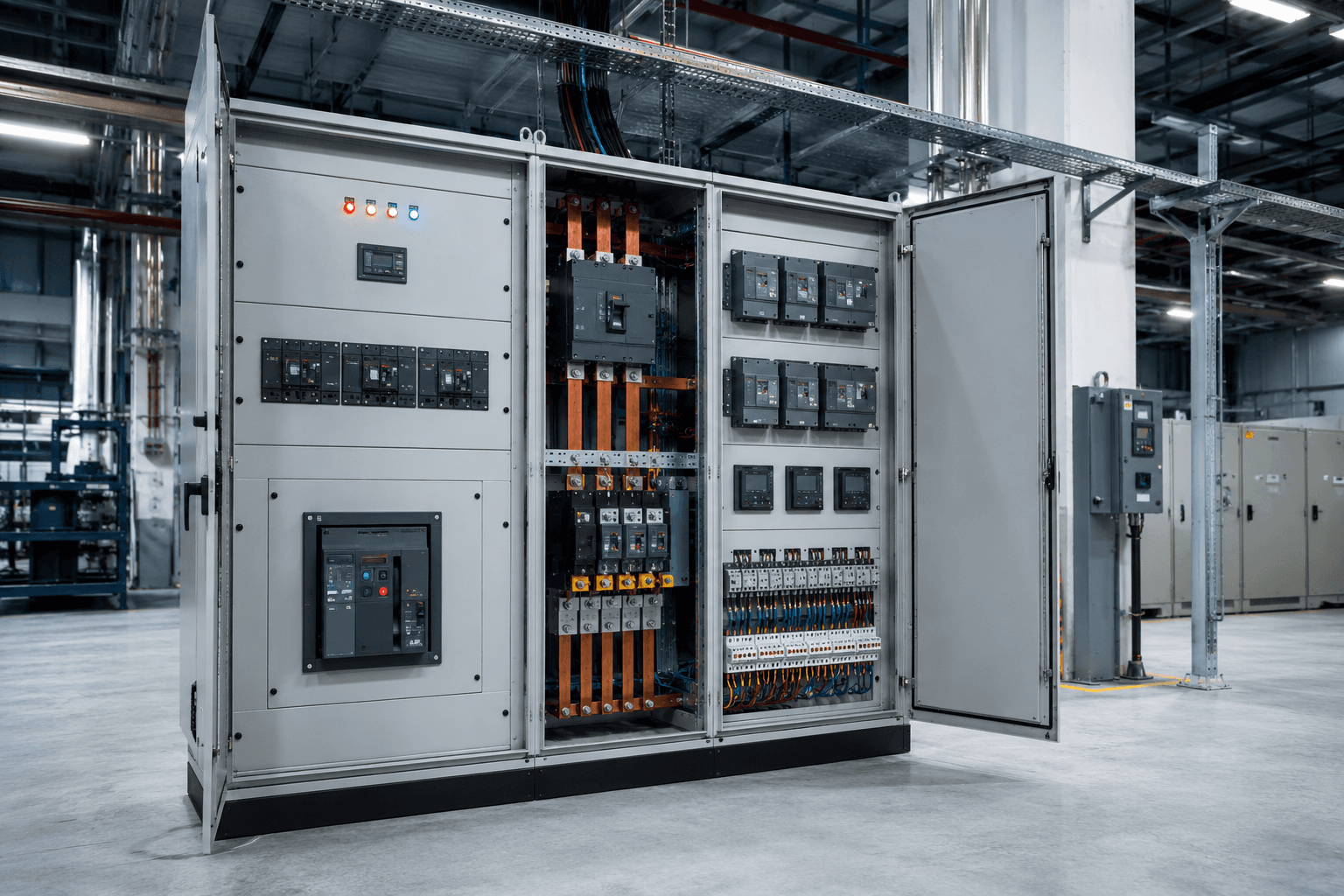

Low Tension (LT) Distribution Panel
Low Tension panels are the backbone of power distribution in industrial and commercial facilities. We design and fabricate custom LT panels built to IS standards, engineered for your specific load requirements and facility layout.
View Details%20Switchgear%20Panel.png&w=3840&q=75)

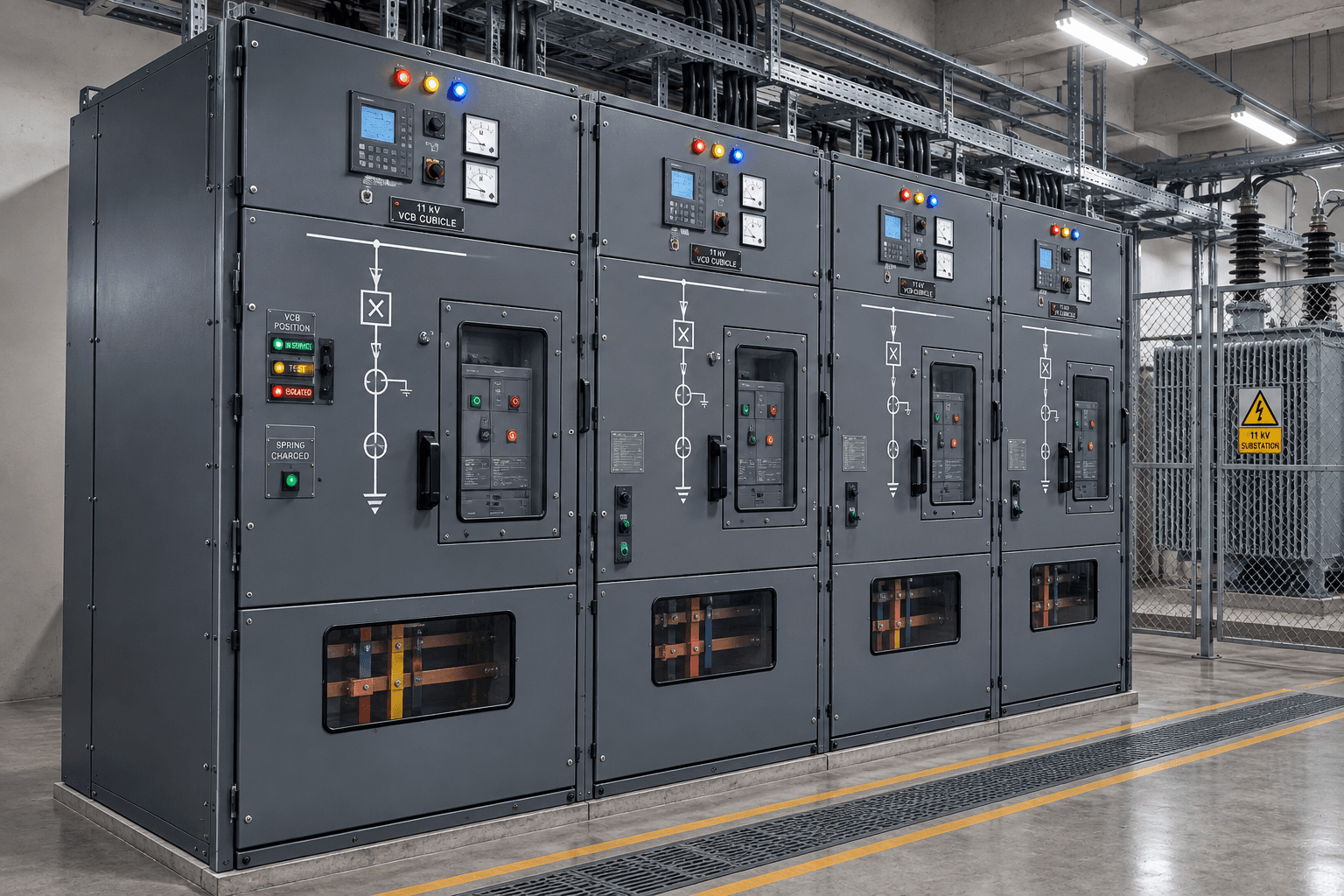

High Tension (HT) Switchgear Panel
High Tension panels handle power at 11 kV and above — critical for industrial facilities with their own HT connections. Our HT switchgear panels are engineered for reliability, safety, and seamless integration with utility supply points.
View Details%20Panel.png&w=3840&q=75)

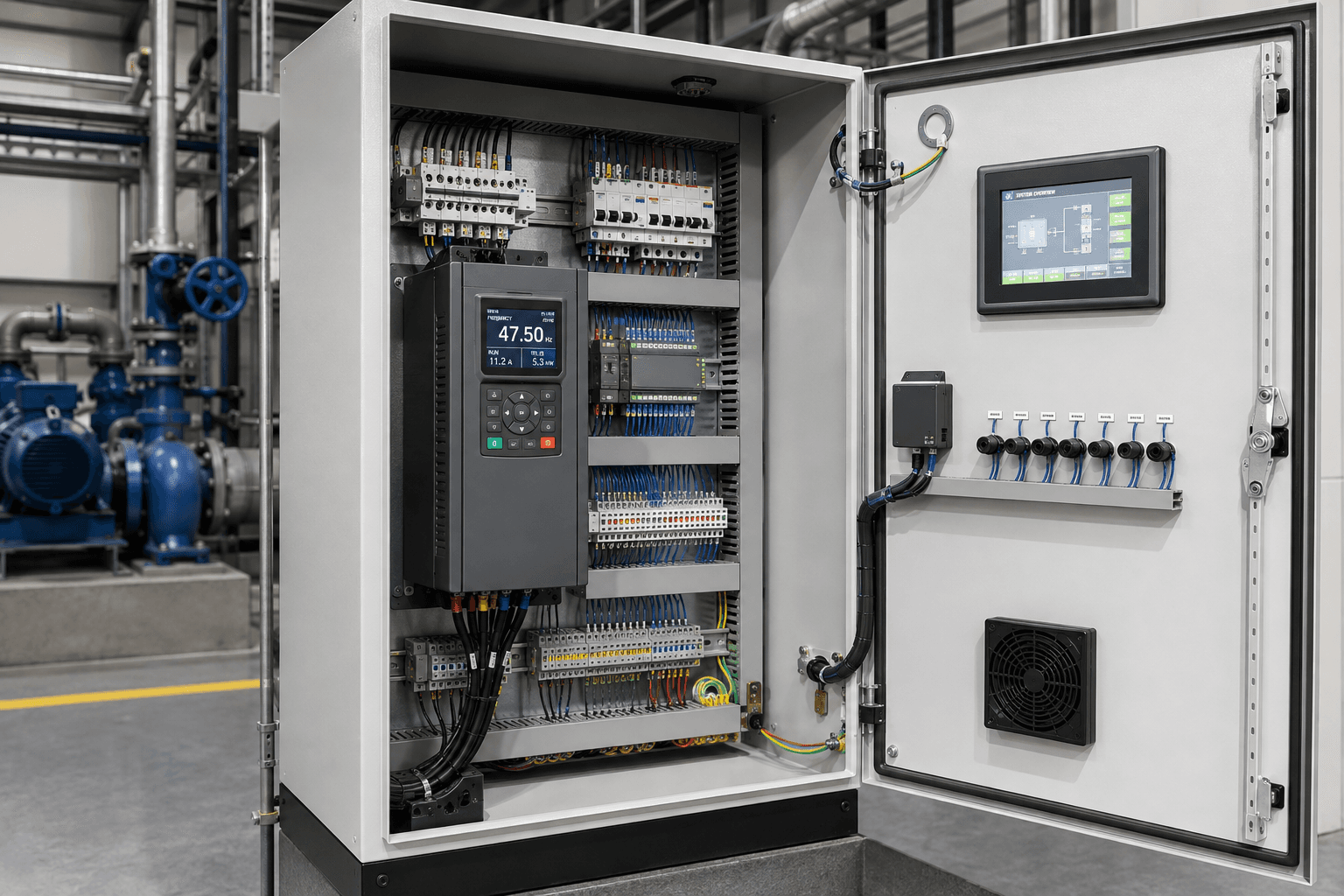

Variable Frequency Drive (VFD) Panel
VFD panels provide precise motor speed control, dramatically reducing energy consumption and mechanical stress. Whether for pumps, fans, compressors, or conveyors — our VFD panels are custom-built and pre-wired for fast site commissioning.
View Details%20Panel.png&w=3840&q=75)

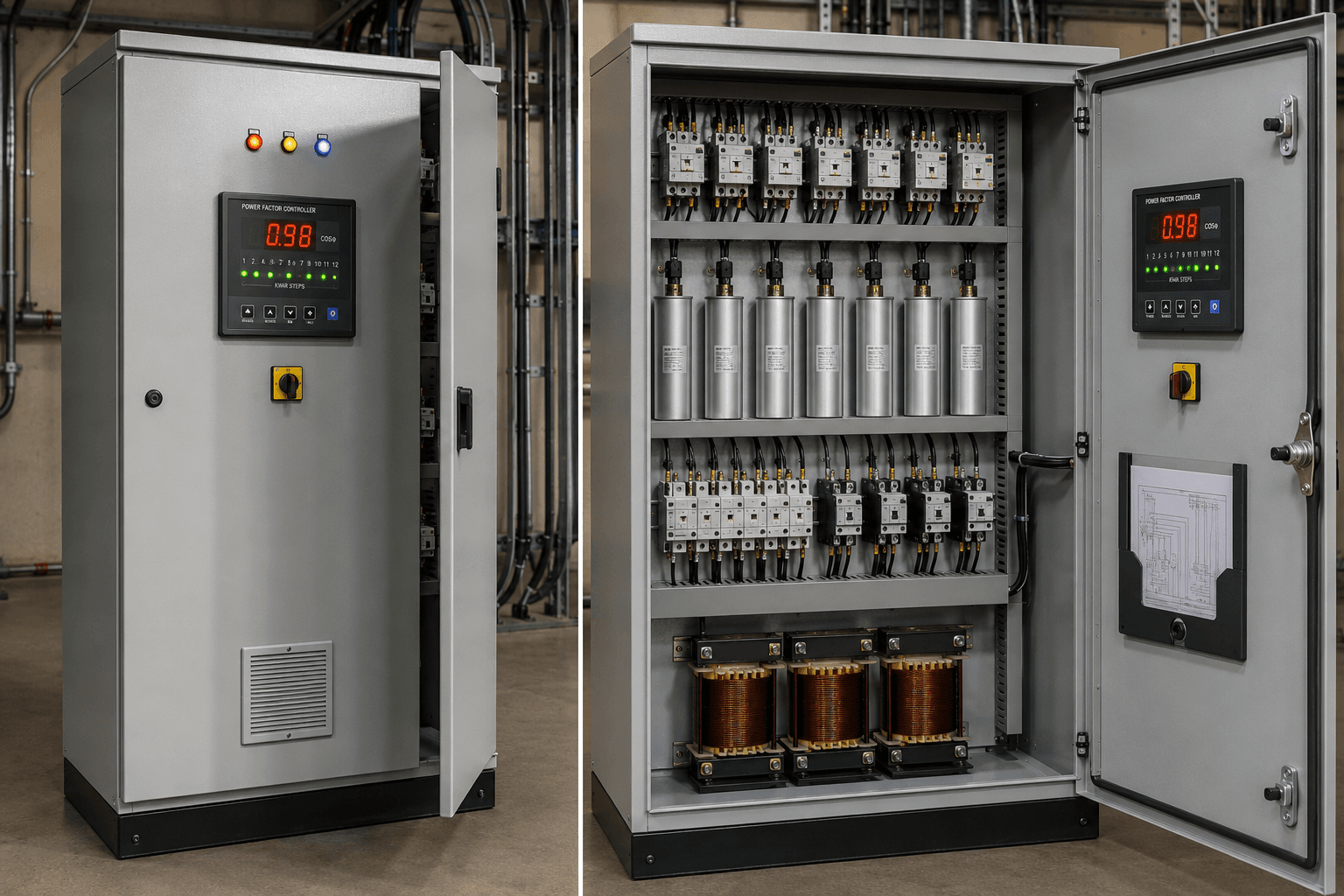

Control & Automatic Power Factor Correction (APFC) Panel
APFC panels automatically maintain your facility's power factor within the utility-required range, eliminating penalty charges on your electricity bill. Our control panels also serve as motor control centers and automation panels for industrial processes.
View Details

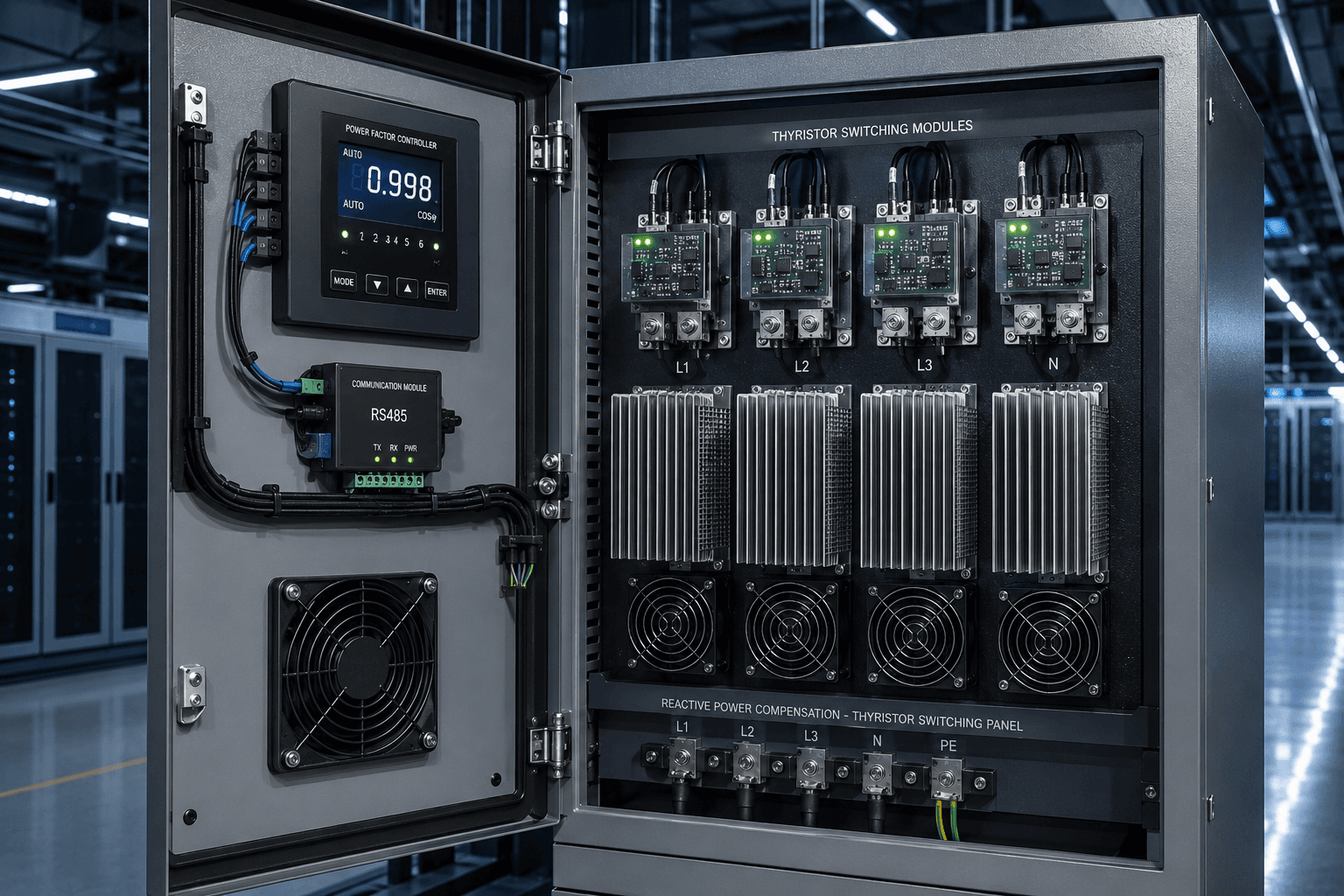

Thyristor Switching Panel
Thyristor switching panels are engineered for ultra-fast, zero-lag reactive power compensation. Unlike standard contactor-based APFC systems, thyristor switching provides transient-free switching, making them ideal for facilities with rapidly fluctuating loads, sensitive electronic equipment, and welding or crane operations where capacitor switching must be instantaneous and silent.
View Details%20Hybrid%20System%20Panel.png&w=3840&q=75)

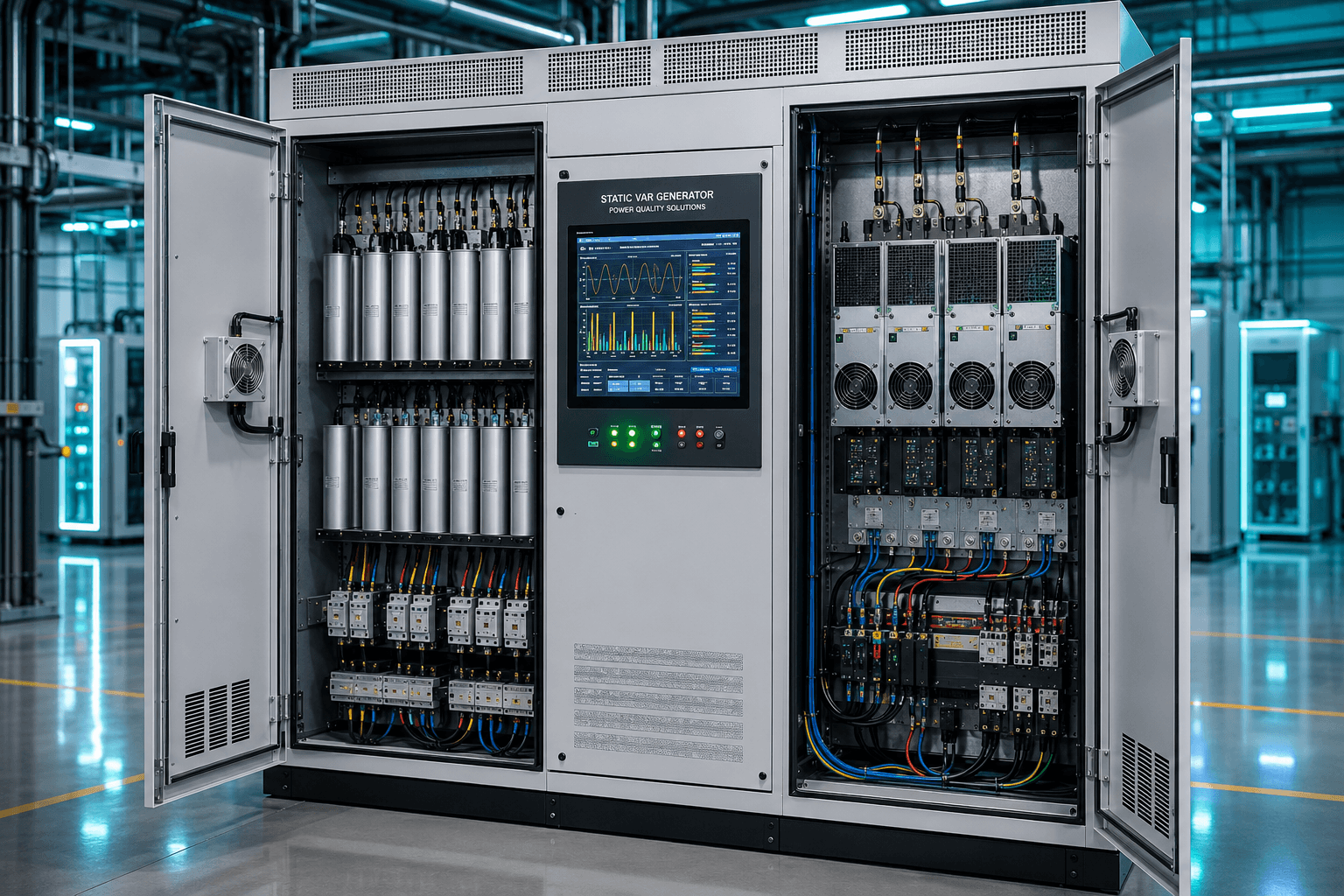

Static Var Generator (SVG) Hybrid System Panel
Static Var Generators (SVGs) are state-of-the-art, active power electronics-based solutions that provide dynamic, stepless reactive power compensation. Unlike conventional capacitors, SVGs inject leading or lagging current instantaneously to correct power factor and stabilize voltage, even in systems with severe harmonic distortion and unbalanced loads. Our hybrid panels combine APFC capacitor banks with SVG modules for maximum efficiency and cost-effectiveness.
View Details
MSEDCL Liaisoning & Regulatory Approvals
Navigating the complex procedures of the Maharashtra State Electricity Distribution Company Limited (MSEDCL) requires deep technical knowledge and precise documentation. We provide end-to-end liaisoning services to secure new connections, load enhancements, and statutory approvals — ensuring your facility is energized on time and fully compliant with utility regulations.
View DetailsLow Tension (LT) Distribution Panel
Low Tension panels are the backbone of power distribution in industrial and commercial facilities. We design and fabricate custom LT panels built to IS standards, engineered for your specific load requirements and facility layout.
Typical Applications
- Industrial factories & MIDC plants
- Commercial office buildings
- Hospitals & healthcare facilities
- Logistics & warehousing
- Residential complexes & townships
Key Features & Specifications
- Custom-built enclosures per IS 8623 / IEC 61439
- Ratings from 100A to 6300A (busbar configuration)
- Air-insulated or draw-out type breakers
- In-house fabrication — no subcontracting
- Complete metering, protection & indication
- Factory-tested before dispatch
High Tension (HT) Switchgear Panel
High Tension panels handle power at 11 kV and above — critical for industrial facilities with their own HT connections. Our HT switchgear panels are engineered for reliability, safety, and seamless integration with utility supply points.
Typical Applications
- Industries with HT (11kV) utility connection
- Large manufacturing plants
- Power-intensive process industries
- Substations & transformer yards
- Infrastructure & utility projects
Key Features & Specifications
- 11 kV & 33 kV switchgear panels
- Vacuum Circuit Breakers (VCB)
- Ring Main Unit (RMU) configurations
- Bus-bar chambers with protection relays
- Interlocking & safety shutters
- Compliant with IS 3427 / IEC 62271
Variable Frequency Drive (VFD) Panel
VFD panels provide precise motor speed control, dramatically reducing energy consumption and mechanical stress. Whether for pumps, fans, compressors, or conveyors — our VFD panels are custom-built and pre-wired for fast site commissioning.
Typical Applications
- Pumps & water treatment plants
- HVAC fans & AHUs
- Compressors & blowers
- Conveyors & material handling
- Cooling towers & chillers
Key Features & Specifications
- Leading VFD brands: ABB, Siemens, Schneider (as specified)
- Single & multi-drive enclosures
- Input/output isolation transformers (optional)
- Bypass contactor for emergency operation
- PLC integration & remote monitoring ready
- Energy saving: up to 50% on variable load drives
Control & Automatic Power Factor Correction (APFC) Panel
APFC panels automatically maintain your facility's power factor within the utility-required range, eliminating penalty charges on your electricity bill. Our control panels also serve as motor control centers and automation panels for industrial processes.
Typical Applications
- Factories with heavy motor loads
- Commercial complexes with inductive loads
- Industries facing power factor penalties
- Process automation & motor control
- Hospitals & data centres
Key Features & Specifications
- Automatic power factor correction up to 2000 kVAR (modular)
- Capacitor banks with detuned reactors (anti-harmonic)
- Digital PF controller (Ducati, Epcos, Novar or equivalent)
- Thyristor switching for high-cycle applications (optional)
- Motor Control Centre (MCC) configurations available
- Custom relay logic & PLC-based control panels
ℹ️ What is an APFC Panel — and why does your business need one?
When your facility runs motors, transformers, or other inductive loads, your power factor drops below 1.0. Electricity utilities in India charge a penalty when your average power factor falls below 0.85–0.90. An APFC panel continuously monitors your power factor and automatically switches capacitor banks in/out to keep it near unity — eliminating the penalty and reducing your maximum demand charges. It typically pays for itself within 12–18 months through bill savings alone.
Thyristor Switching Panel
Thyristor switching panels are engineered for ultra-fast, zero-lag reactive power compensation. Unlike standard contactor-based APFC systems, thyristor switching provides transient-free switching, making them ideal for facilities with rapidly fluctuating loads, sensitive electronic equipment, and welding or crane operations where capacitor switching must be instantaneous and silent.
Typical Applications
- Facilities with rapidly fluctuating loads (e.g., spot welding, cranes, presses)
- High-rise buildings and data centers with sensitive electronics
- Pharmaceutical and semiconductor plants requiring pure power
- Textile and rolling mills with heavy, cyclic motor loads
- Induction furnaces and arc furnaces
- Renewable energy systems (Solar/Wind) requiring dynamic PF correction
Key Features & Specifications
- Ultra-fast switching: response time less than 20 milliseconds
- Zero-maintenance, silent operation (no mechanical contactors required)
- Zero-transient switching ensuring no inrush current or voltage spikes
- Thyristor modules (e.g., Semikron, Infineon, or equivalent)
- Designed to handle continuous switching cycles (up to millions of operations)
- Integrated cooling system and overtemperature protection
- Digital power factor controller with high-speed communication (RS485/Modbus)
- Ratings available from 50 kVAR to 5000 kVAR (modular)
- Compliant with IEC 60439 / IS 8623 standards
Static Var Generator (SVG) Hybrid System Panel
Static Var Generators (SVGs) are state-of-the-art, active power electronics-based solutions that provide dynamic, stepless reactive power compensation. Unlike conventional capacitors, SVGs inject leading or lagging current instantaneously to correct power factor and stabilize voltage, even in systems with severe harmonic distortion and unbalanced loads. Our hybrid panels combine APFC capacitor banks with SVG modules for maximum efficiency and cost-effectiveness.
Typical Applications
- Facilities with severe harmonic distortion (VFD, UPS, inverter loads)
- Plants with rapidly varying and unbalanced loads
- Wind and solar power plants (grid stability and power quality)
- High-tech data centers and research labs (requiring ultra-clean power)
- Electrical arc furnaces and induction melting plants
- Marine and offshore electrical installations
Key Features & Specifications
- Stepless, instantaneous reactive power compensation (leading to lagging)
- Active harmonic filtering capability (up to 50th order) — combined in one unit
- Effective on 3-phase, 3-wire and 3-phase, 4-wire systems
- Hybrid design: SVG module combined with standard APFC capacitor banks for optimized cost
- Microprocessor/DSP based intelligent control
- Advanced IGBT-based inverters from trusted global brands
- Voltage balancing and flicker mitigation for unstable grid conditions
- User-friendly touch screen interface with real-time data logging
- Ratings available from 30 kVAR to 5000 kVAR (modular, parallel operation)
MSEDCL Liaisoning & Regulatory Approvals
Navigating the complex procedures of the Maharashtra State Electricity Distribution Company Limited (MSEDCL) requires deep technical knowledge and precise documentation. We provide end-to-end liaisoning services to secure new connections, load enhancements, and statutory approvals — ensuring your facility is energized on time and fully compliant with utility regulations.
Typical Applications
- New industrial & commercial facility setups requiring HT/LT connections
- Existing industries upgrading their sanctioned load (Load Enhancement)
- Temporary supply connections for construction sites & events
- Metering, relaying, and protection scheme approvals
- Change of ownership, tariff reclassification, and name transfers
- Green energy (solar/wind) net-metering approvals and synchronization
Key Features & Specifications
- Complete application preparation and document management
- Coordination with MSEDCL sub-division, division, and circle offices
- Technical design and vetting of metering cubicles, CT/PT sets, and protection relays
- Accurate calculation of demand charges, development charges, and security deposits
- Site inspections, pre-commissioning testing, and energy meter sealing follow-ups
- Facilitation of Right of Way (ROW), trenching, and duct laying permissions (as applicable)
- Resolution of bill disputes, penal charges, and billing errors with the utility
- NOC (No Objection Certificate) assistance for factory license renewals and CEIG clearances
Ready to Get Started?
Whether you need custom electrical panels built or a professional energy, safety, or power quality audit — our engineers are ready to help. Reach out for a free consultation.
